J/70
It all started with a boat that's a BLAST to sail!
J/70 - One Design Speedster
Easier to trailer, rig and ramp launch
The J/70 Speedster (22.75 feet) is J/Boats’ first ramp-launchable, keelboat – designed to fulfill the need for an easy-to-own, high performance one-design that’s exciting to sail, stable enough for the entire family, AND easy to tow, rig, launch and sail. Since its introduction in 2012, the J/70 has become the most prolific sportboat in the world with 1800+ boats sailing in 30+ countries. It all started with a boat that’s a BLAST to sail!
Key J/70 Features
– Large comfortable cockpit with open transom.
– Deck-stepped carbon mast for easy rigging & stepping.
– Inexpensive three sail inventory with masthead A-Sail.
– Vertical lifting keel.
– Small cabin for storage and personal privacy.

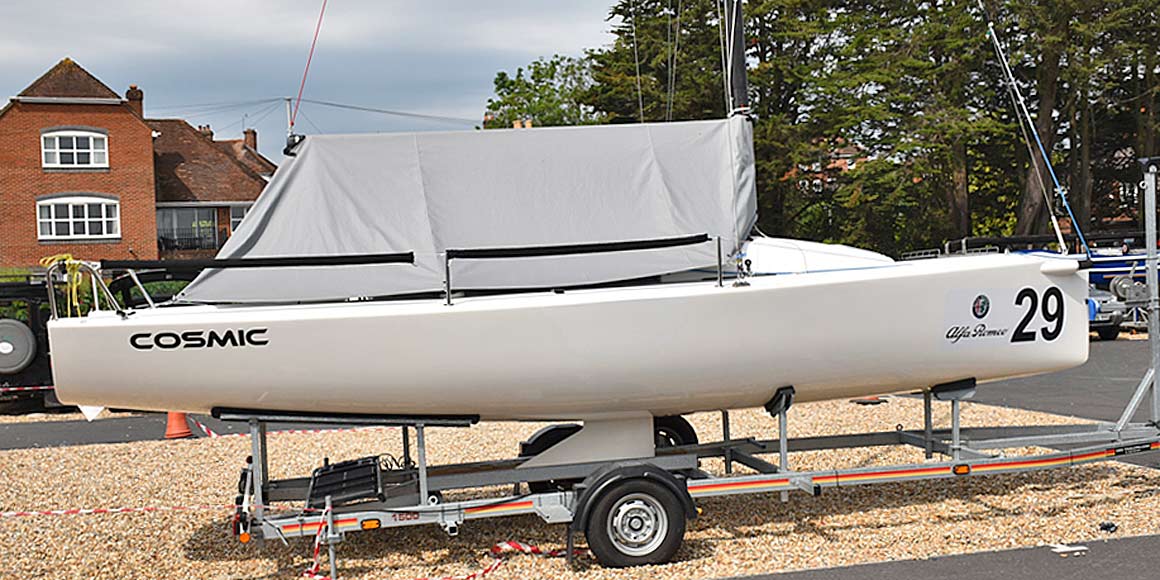

– Easy to trailer to regattas, ramp launch and store at home.
– Only 1,750 lbs so most 6 cyl vehicles can easily tow.
– Fits inside most standard garage doors!

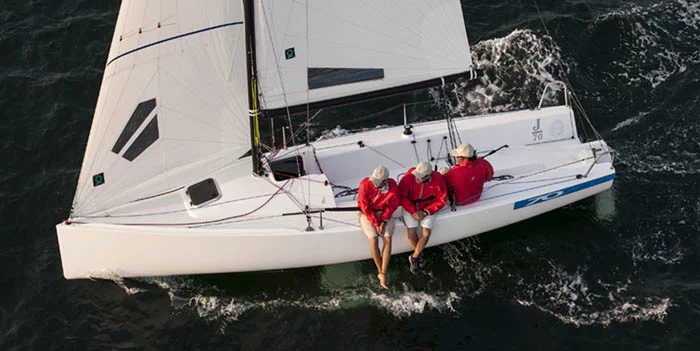

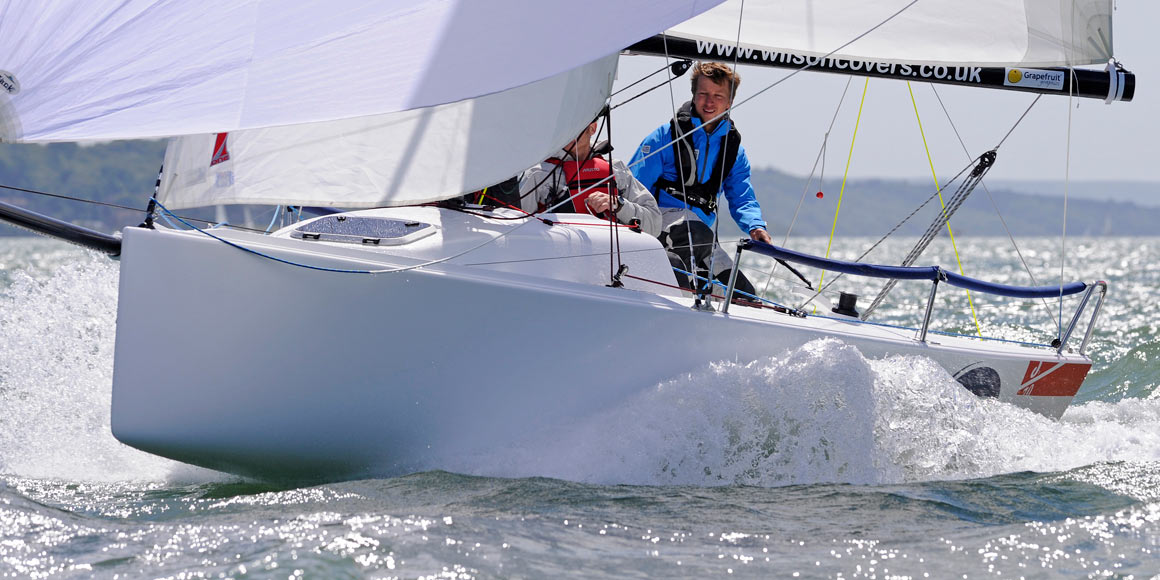

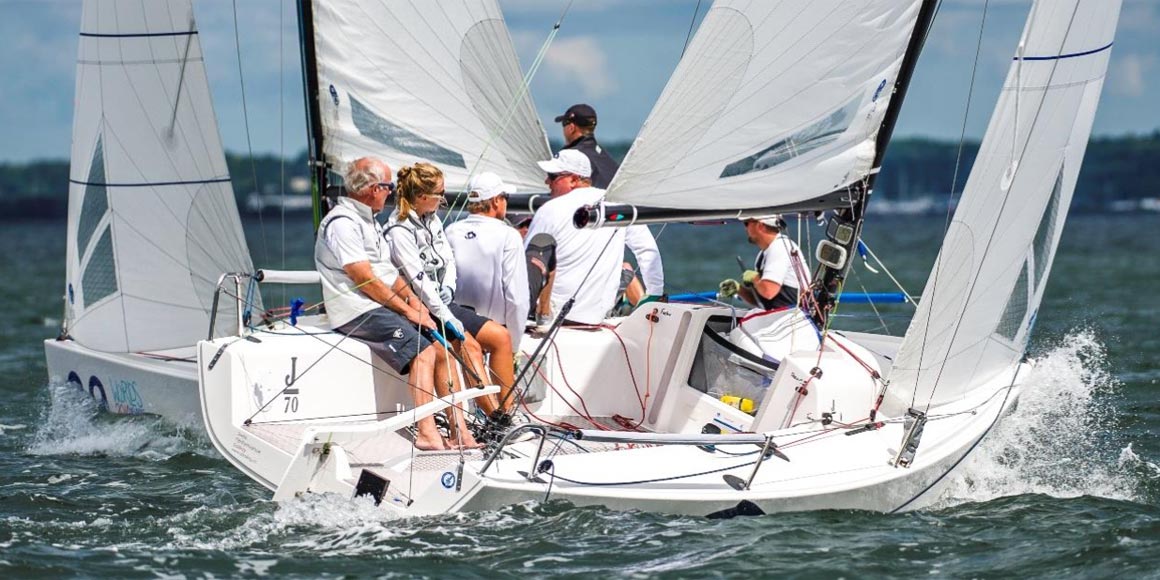

More comfortable to sail on deck
The 11′ long cockpit and moderate height boom in the J/70 allow easy crew movement across the cockpit while tacking and jibing. For sitting and hiking comfort, mid-height padded backrests/lifelines run cockpit length, large cockpit floor mounted toe-rails for secure foot bracing and comfortable seat height and ergonomics makes J/70 one of the most comfortable small keelboats to helm. No need for hiking straps to keep you in the boat. Plus there are strict class limits on how to hike to make the boat less physical to sail.

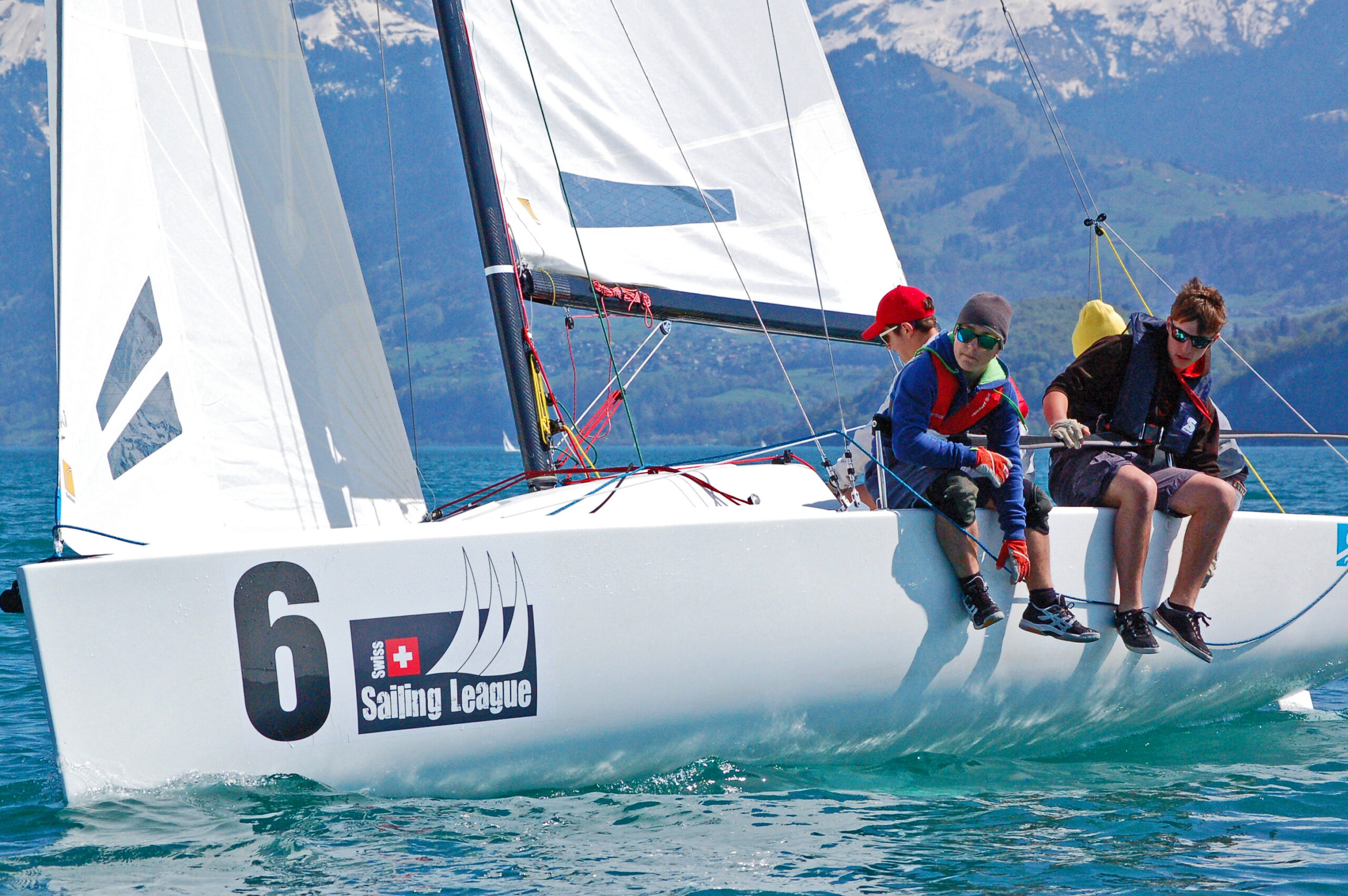

Easy for the entire family to join in!
With standard jib/spin sheet winches, a feather light responsive helm and confidence building stability, you can enjoy sailing with friends and family more often. Juniors and seniors alike feel as comfortable and in control steering or trimming. Whether daysailing or joining in for some sunset racing, the J/70 is both exciting and forgiving. And then if you want to take it to the next competitive level, there’s J/70 competition almost everywhere on the planet.
On-board privacy, storage & auxiliary power
The small cabin below is a bonus in any small keelboat, and the J/70 cabin is just large enough to provide weather & sun protection, a place to nap and/or for personal privacy . . . essential to keeping the whole crew happy if spending a full day on the water.
J/70 International Class Association
The J/70 Class Association is a dynamic owner-based organization with professional management that oversees an active regional, continental and world sailing calendar. Recognized by World Sailing as an international class, the J/70 Class holds annual European, North American, South American and World Championship events with special recognition of its Open, Corinthian, Women and Youth champions.
The J/70 one-design class rules require a 2.5 hp outboard engine (gas or electric), plus anchor and additional safety gear. This means one can be self sufficient on the water without worrying about paddling home. Race Committees can start races on time and finish them later in the day without having to tow boats.
J/70 Principal Dimensions
| Dimensions | Foot/ Lbs | Meter/ Kg |
| LOA | 22.75 | 6.93 |
| LWL | 20.47 | 6.24 |
| Beam | 7.38 | 2.25 |
| Standard Draft | 4.75 | 1.45 |
| Standard Ballast | 630 | 286 |
| Displacement | 1,750 | 794 |
| Engine | outboard | outboard |
| 100% SA | 226 | 21.02 |
| I | 26.77 | 8.159 |
| ISP | 30.15 | 9.19 |
| J | 7.68 | 2.34 |
| P | 26.16 | 7.97 |
| E | 9.44 | 2.88 |
| SA/Dspl | 25 | 25 |
| Dspl/L | 91 | 91 |
Construction
• J/70 hull laminated with biaxial and unidirectional Eglass fabrics and balsa core for rugged durability. Deck
molded with similar glass fabrics and Corecell foam
core. High density core material and additional glass
reinforcements are placed in way of highly loaded
hardware. All laminates are engineered and built to
required ISO structural standards.
• Molded internal bulkheads and ring frames with gelcoat
finish, bonded to the hull and/or deck.
• Molded lift-keel structure jigged, aligned and integrally
molded during primary hull layup.
• High strength, inward turning and overlapping hull to
deck joint bonded with structural adhesive.
• Molded non-skid on horizontal deck surfaces.
• 4.75’ draft lifting keel with lead ballast featuring an
internal leading-edge kelp cutting mechanism operable
from the cockpit while underway, SS lock down plate
and a single point lifting ring w/2:1 aluminum keel crane
lift system.
• (2) Boat lift padeyes installed adjacent to keel P&S.
• High aspect transom mounted molded rudder.
• Lightweight aluminum outboard bracket mounted to
transom.

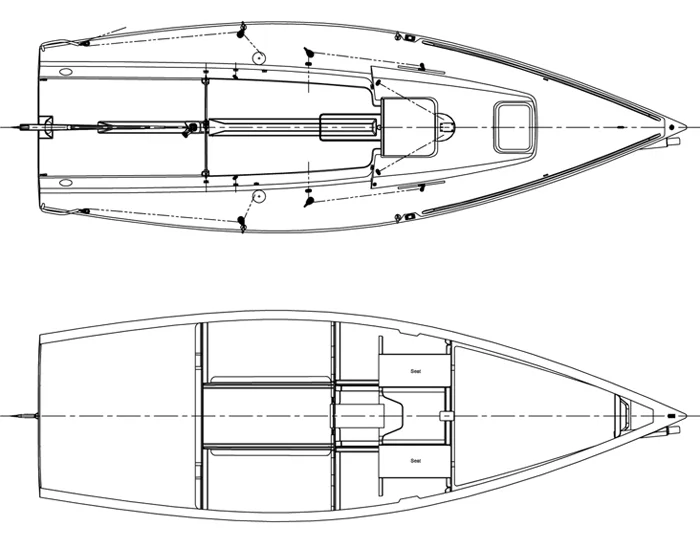

Deck
• Large self-draining cockpit with molded foot braces on
centerline.
• Molded companionway cover both hinged & removable
with lockable drop board.
• Molded foredeck toe-rails P & S.
• SS custom fabricated chain plates for shrouds and
backstay terminations.
• Interior ventilation hatch mounted on cabin house
forward of mast.
• Manual bilge pump in cockpit.
• (2) Harken SnubbAir low profile primary winches with
cam cleats.
• Two anodized jib T tracks with cars.
• One set of cam cleats on side deck for direct cleating
the jib sheet.
• 5:1 mainsheet system leading to ratchet block and cam
mounted on centerline swivel base.
• Adjustable mainsheet traveler with 2:1 control line and
cam cleats P & S.
• Double ended backstay adjuster purchase system
leading forward to P & S cam cleats.
• Internal bowsprit launching system to exit aft face of the
cabin house to cam cleat.
• Harken Small Boat Underdeck headsail furling system
with hoistable swivel and control line exiting aft face of
cabin house to cam cleat.
• Tack line cam cleat mounted to starboard on cabin.
• Composite tiller with tiller extension.
• (4) Spinnaker sheet blocks with (2) outboard of primary
winches and (2) aft.
• (2) halyard lead blocks mounted at mast base.
• Four low height SS stanchions and two reinforced SS
stern rails at transom corners.
• 12” SS safety lines surrounding the cockpit with comfort
pads and termination points on deck edge forward of
shrouds.
• Transom lifeline gate.
• Foredeck U-bolt for mooring/dockline attachment.

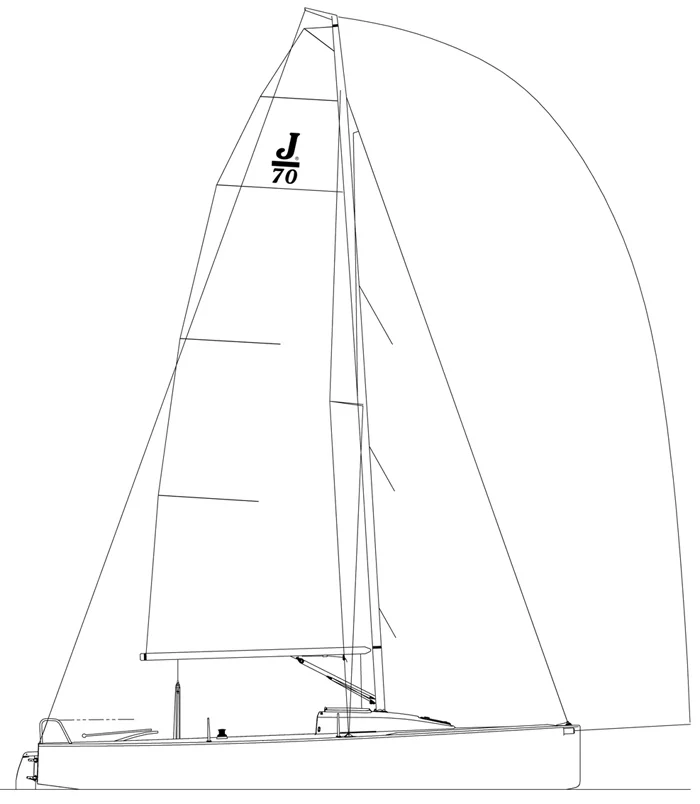

Spars & Rigging
• Selden Spars carbon fiber mast with single swept
aluminum spreaders and stainless thru-bar attachment,
carbon masthead crane, and mainsail luff track. Easy to
raise and lower with deck step design and tabernacle
system. Mast finished in satin black with contrasting
white bands.
• Carbon fiber boom with internal 4:1 outhaul, mainsheet
attachment point, outhaul and single reef sheaves.
Finished in satin black with contrasting white bands.
• Carbon bow sprit with tack fitting.
• 1 x 19 wire standing rigging with adjustable open body
turnbuckles for shrouds.
• Double ended boom vang system with swivel cleats.
• Running Rigging Package includes:
• Main, jib & spinnaker halyards
• Main sheet, spinnaker sheets, jib sheets
• Tack line, sprit control line
• Vang control line
• Traveler and backstay control lines
• Cunningham

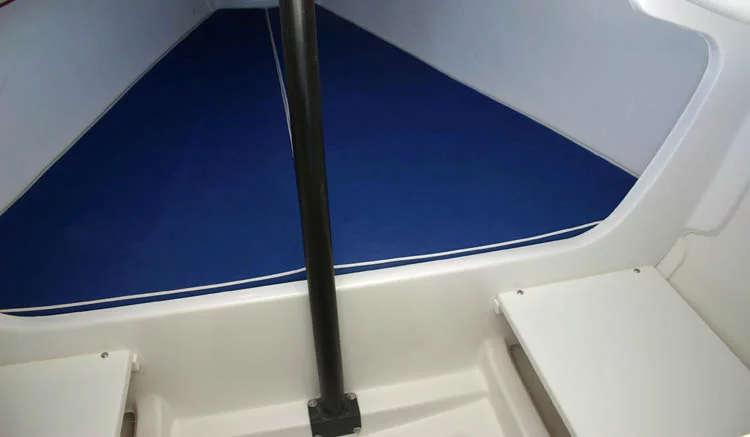

Interior
• Air dry gelcoat finish on hull & deck surfaces
• Bench style molded seats P & S.
• Bin storage aft of seats.
• Molded liner platform with inspection port.
• Molded cockpit support bulkhead with inspection port.
• Anodized aluminum compression post to transfer mast
step loads to internal hull structure.
• Molded entry step.
NOTICE: Specifications are subject to change prior to delivery due
to deletions, additions or revisions in quantities, brand or design at
the sole discretion of J/Boats, Inc. Newport, RI
